6×6

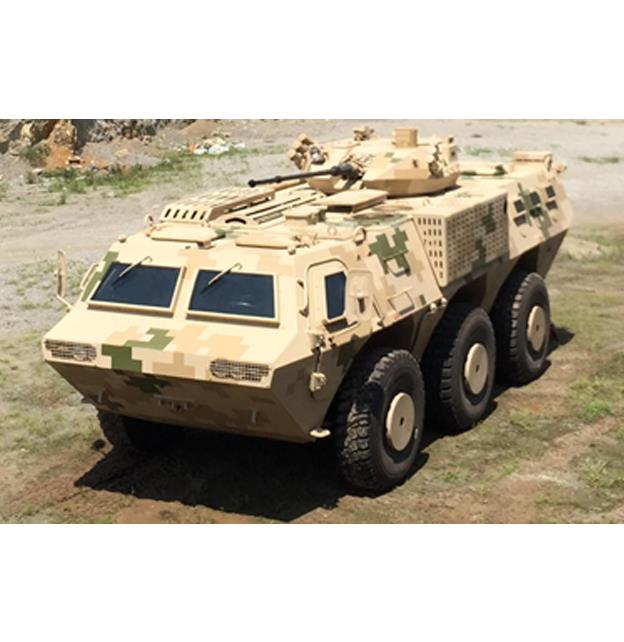

Wheeled Armored Vehicle Type CS/VN9

Protection capability
Ballistic protection
NATO Ⅱ LEVEL
Front: protecting against 7.62×39mm AP ammo from 100m away;
Side: protecting against 7.62×39mm AP ammo from 200m away;
Rear/top armor: protecting against 7.62mm ball ammo and fragment

Technical Specification

  • Weapon 30mm automatic gun+7.62mm GPMG
  • 14.00R20-18PR(FD) Automatic fire extinguishing
  • Cross-country tire 14.00R20-18PR(FD)
  • Air conditioning Cooling 12kw
  • Starter 24V,7.8kw
  • Generator 28V,4.2kw
  • Model/number of batteries 6-TKFM-200/2
  • Steering system Hydraulic power assisted
  • Suspension Double wishbone independent suspension with coil spring
  • Parking brake Drum brake
  • Brake Control mechanism Pneumatic control
  • Gearbox Number of gears Manual with synchronizer Forward 9 Reverse 1
  • Gearbox Model 5S-150 GPA(MT)
  • Gearbox Type Mechanical
  • Engine Fuel Diesel
  • Engine Max. rated power and Rev. 275kw/2100 rpm
  • Engine Model Cummins L375-20
  • Weapon 30mm automatic gun+7.62mm GPMG
  • Fording depth 1200
  • Vertical obstacle height(mm) 550
  • Max climbing gradient (%) 60
  • Max range(km) 800
  • 40/33 40/33
  • Approach/ Departure angle(°) 40/33
  • Ground clearance (mm) 430

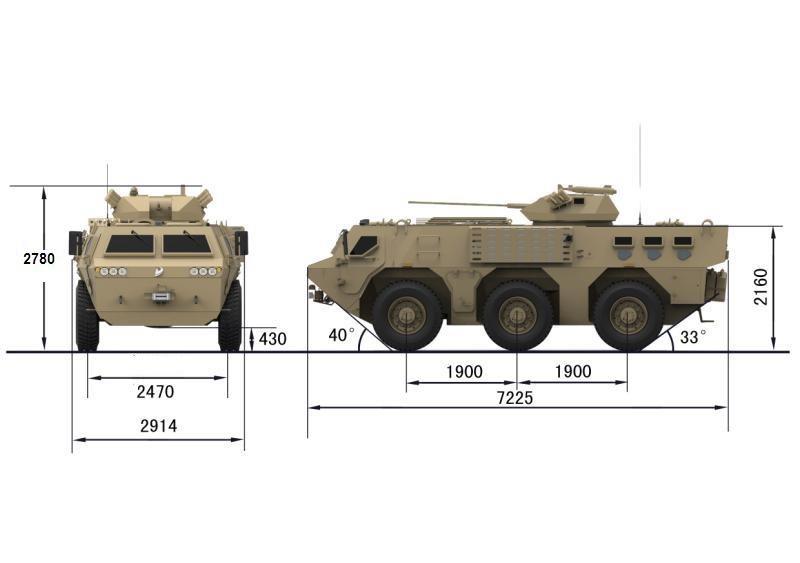

  • L×W×H (mm) 7225×2914×2160(From ground to top plate)
  • Full combat weight (kg) 18000
  • Crew 2+6
  • Drive type 6×6
